Product features

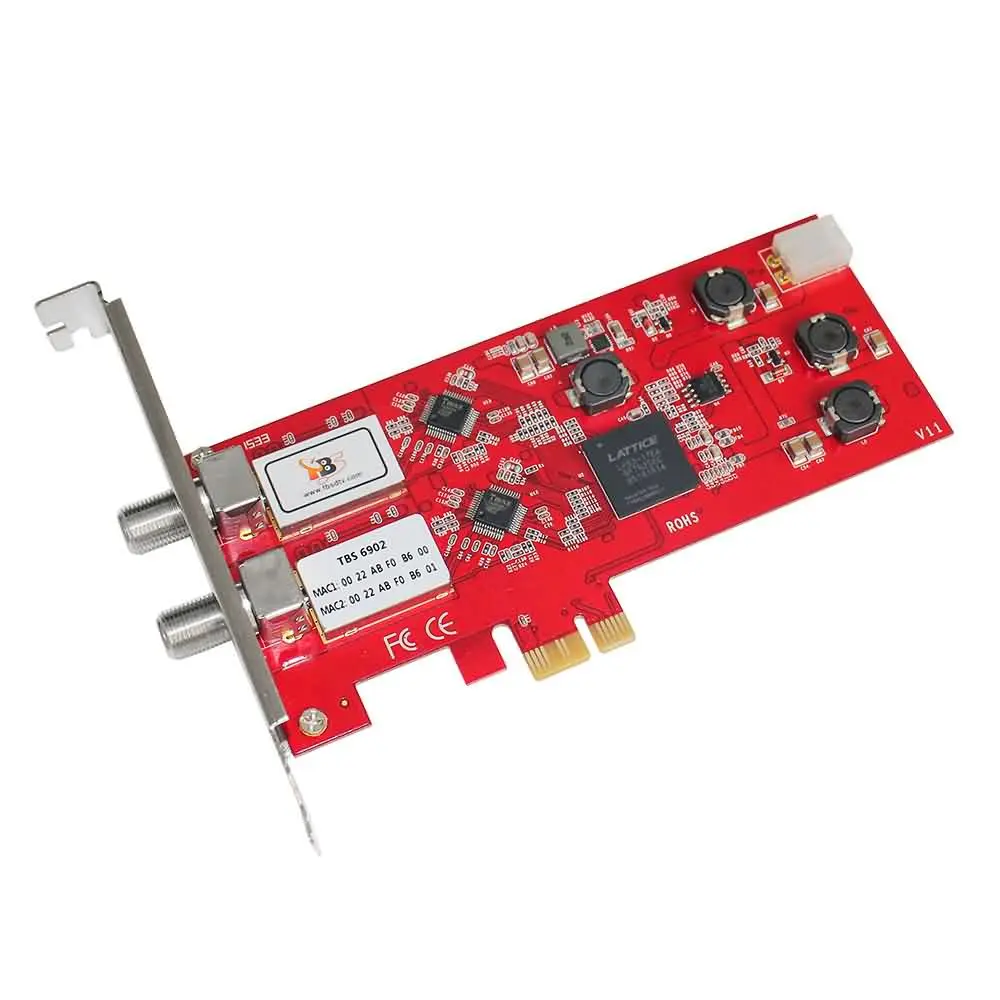

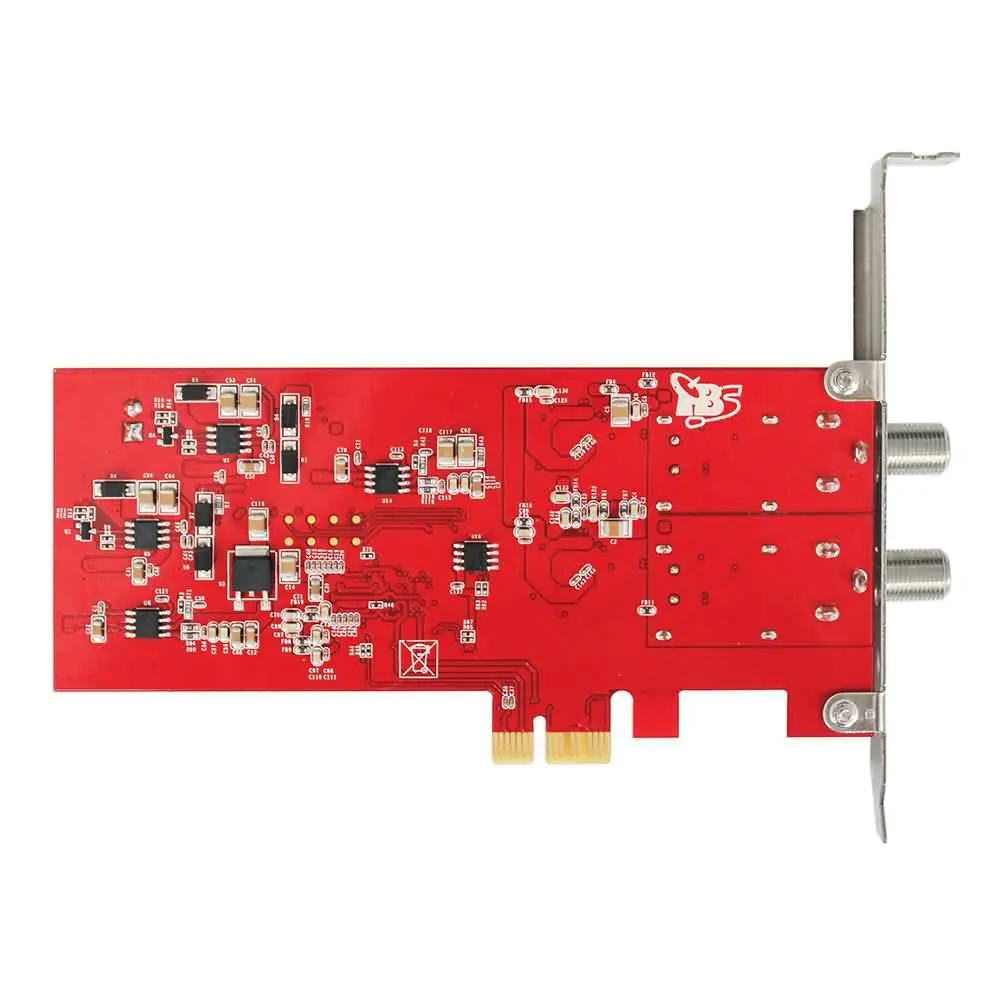

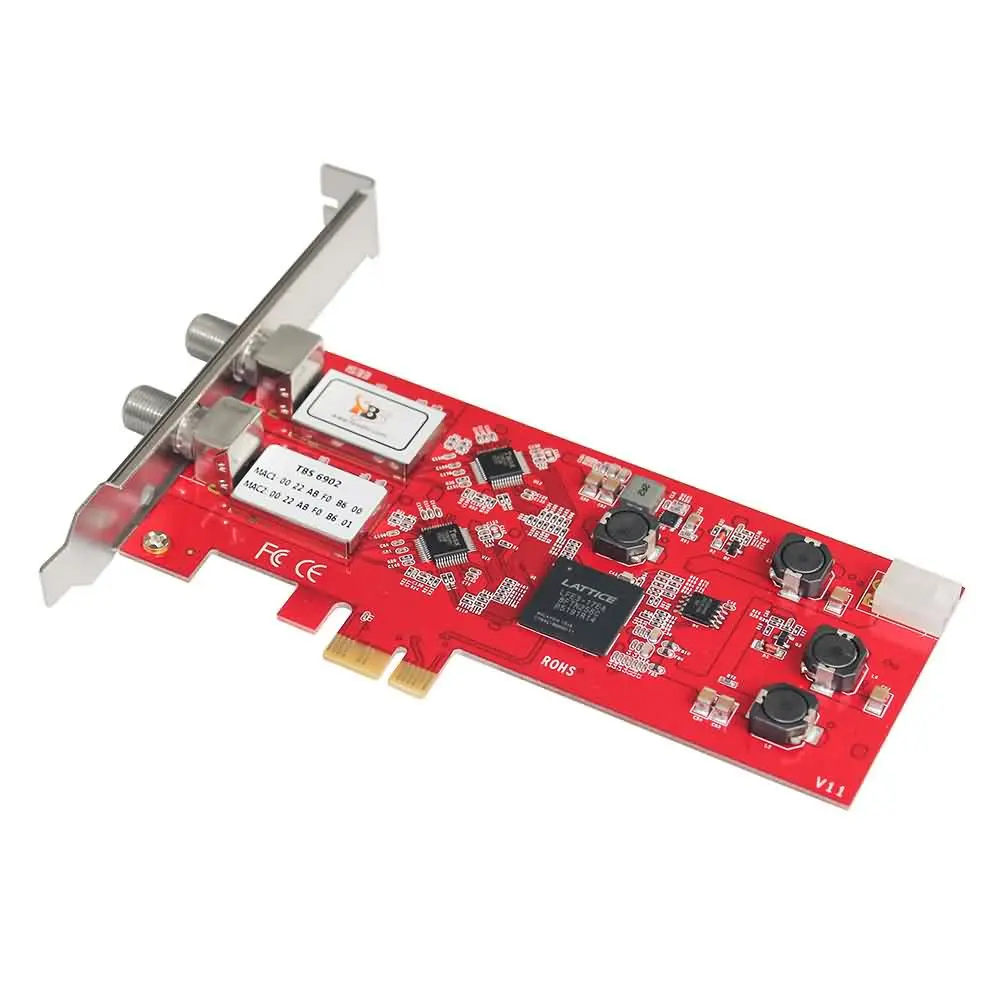

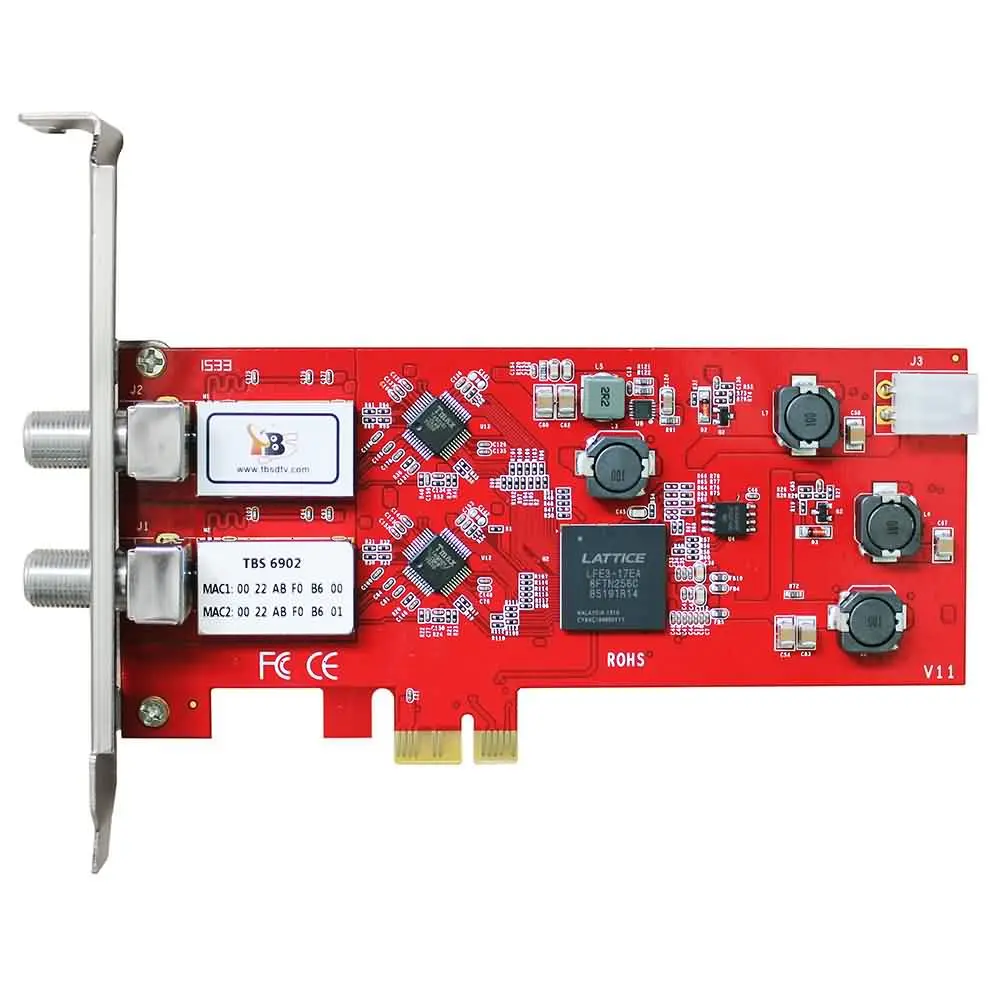

- Digital satellite TV reception card with 2 tuners for TV and satellite radio reception
- Low-Profile Format
- Receive two channels simultaneously, for recording AND viewing
- PCI Express Card (PCIe x1)
- All resolutions and codecs (e.g. 1080p, FullHD, 4K, MPEG, H.264, HEVC etc.) are supported, but depend on the rest of the PC hardware/software
- Plug & Play Installation
- Manual and time-controlled recording of digital TV/radio
- Teletext
- TimeShift function for time-shifted television
- Electronic Program Guide (EPG)
- DiSEqC 2.0 compatible
- Unicable kompatibel
- Full support for 32-bit and 64-bit operating systems
- Software application with various functionalities for TV reception
Technical specification
- Frequency range: 950 to 2150 MHz
- Symbol Rate:
- DVB-S QPSK 1 bis 45 Msps
- DVB-S2 QPSK/8PSK 1 bis 45 Msps
- DVB-S2 CCM:
- QPSK: 1/2, 3/5, 2/3, 3/4, 4/5, 5/6, 8/9, 9/10
- 8PSK: 3/5, 2/3, 3/4, 5/6, 8/9, 9/10
- 16APSK: 2/3, 3/4, 4/5, 5/6, 8/9, 9/10
- 32APSK: 3/4, 4/5, 5/6, 8/9, 9/10
- DVB-S:
- QPSK: 1/2, 2/3, 3/4, 5/6, 7/8
Connections and other information
- Two satellite TV antenna inputs
- Max. dimensions of the card (W x D x H in cm): 5.5 x 14 x 2
- Weight: approx. 0.09 kg
Minimum system requirements
- Operating system (32-bit and 64-bit): Windows 7, Windows 8, Windows 10, Windows 11 (only with kernel isolation disabled), Linux
- CPU for SDTV: min. Pentium3, 1 GHz or comparable AMD Athlon or alternatively video decoding via graphics chip
- CPU for HDTV: min. Pentium3, 3 GHz or comparable AMD Athlon (Dual Core recommended) or alternatively video decoding via graphics chip
- 1GB RAM recommended
- Min. 1GB of free hard disk space
- Graphics card with at least 64MB memory
- Sound card with DirectX® 9 support or higher
- One free PCIe slot
- Digital-compatible satellite reception system
Scope of delivery
- 1 x dual tuner DVB-S2 PCIe card
- 1 x slot cover for low profile
- 1 x PCIe Power Cable
- 1 x driver, quick installation guide and software (for download)
