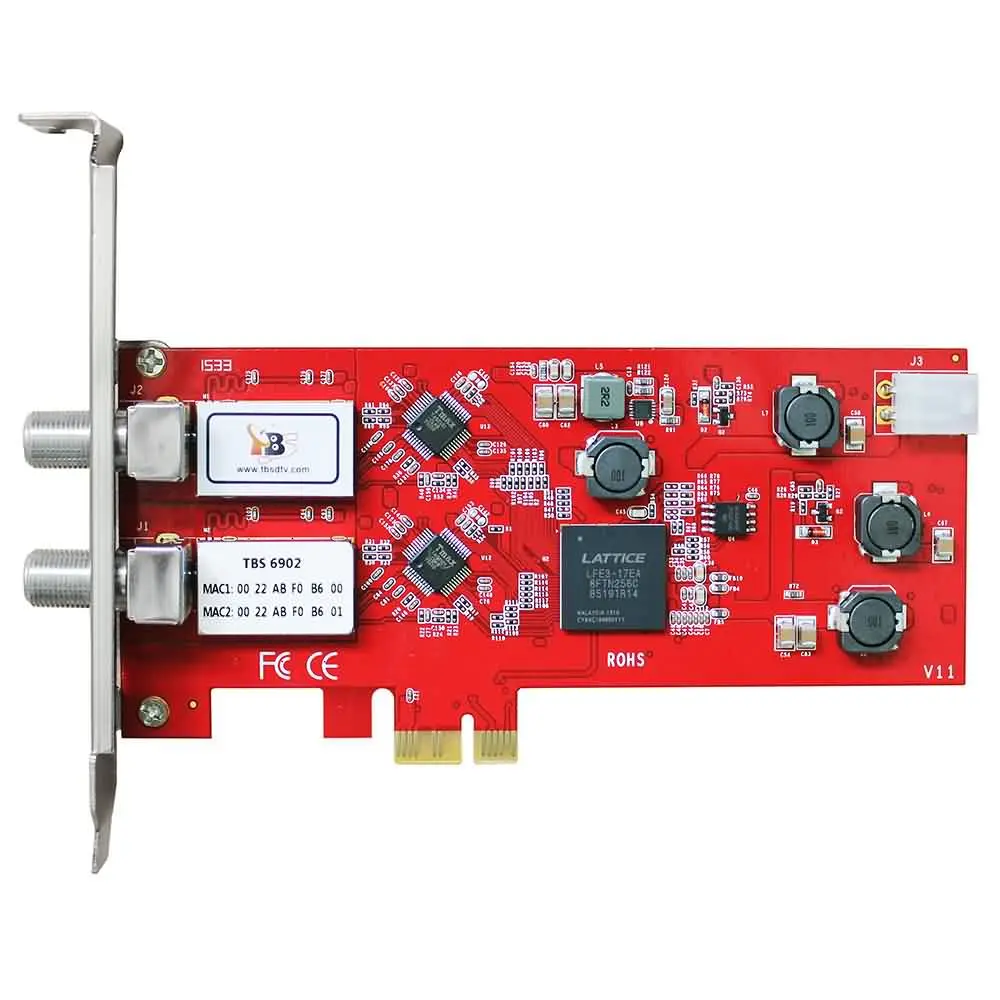

DVB-S2/-S Doppel-Tuner, PCIe Satelliten-TV-Karte (LP), TBS-6902

https://od.tbs-technology.de/web/image/product.template/1532/image_1920?unique=cfc1dd6

 The dual-tuner TV card is suitable for the reception of digital satellite television in all HD resolutions. It has two DVB-S2 tuners, so you can simultaneously record a channel and watch another channel. You can easily record live TV shows immediately or time-controlled on your data carrier by only one click.

This card is ideal for Media Center and PC systems and due to the compact low-profile design fits in almost all cases. It possesses drivers for most 32-bit and 64-bit operating systems (Microsoft and Linux). In addition to the excellent facilities and the modern PCIe (x1) interface is also provided with low power consumption and thus a low waste heat, for silent operation.


89.00 € 89.0 EUR 89.00 € Tax Included

100.00 € Tax Included

Not Available For Sale

  • Tuner type (satellite)
  • Tuner type (satellite)
  • Common-Interface (CI)
  • Interfaces

This combination does not exist.

Tuner type (satellite) Satellite DVB-S2X, Satellite DVB-S/S2
Common-Interface (CI) No
Interfaces PCI-Express PCIe
  FAQ       Frage zum Artikel
Contact Us

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Share

Product featuresSpecificationsConnections and other detailsMinimal system requirementsPackage contentDownload

Product features

  • Digital satellite TV receiver card with 2 tuners for TV and FM reception
  • Low-profile
  • Two transmitters simultaneously receive for receiving AND Watch
  • PCI Express (PCIe x1)
  • All resolutions and codecs (e.g.: 1080p, FullHD, 4K, MPEG, H.264, HEVC and many more) are supported, but also depending on your PC-hardware/software
  • Plug & Play installation
  • Manual and scheduled recording of digital TV / radio
  • Teletext
  • TimeShift function to Pause Live TV
  • Electronic Program Guide (EPG)
  • DiSEqC 2.0, Unicable compatible
  • Unicable compatible
  • Full support for 32-bit and 64-bit operating systems
  • Software application with multiple functionalities for TV reception

Specifications

  • Frequency range: 950 to 2150 MHz
  • Symbol rate:
  • DVB-S QPSK 1 to 45 Msps
  • DVB-S2 QPSK/8PSK 1 to 45 Msps


  • DVB-S2 CCM:
  • QPSK: 1/2, 3/5, 2/3, 3/4, 4/5, 5/6, 8/9, 9/10
  • 8PSK: 3/5, 2/3, 3/4, 4/5, 5/6, 8/9, 9/10
  • 16APSK: 2/3, 3/4, 4/5, 5/6, 8/9, 9/10
  • 32APSK: 3/4, 4/5, 5/6, 8/9, 9/10


  • DVB-S:
  • QPSK: 1/2, 2/3, 3/4, 5/6, 7/8

Connections and other details

  • Two satellite TV antenna inputs
  • Maximum dimensions of the card (W x D x H in cm): 5.5 x 14 x 2
  • Weight: 0.09 approx. kg

Minimal system requirements

  • Operating system (32-bit and 64-bit): Windows7, Windows8, Windows10, Windows11 (core isolation deactivated), Linux
  • CPU for SDTV: min. Pentium 3, 1 GHz or similar AMD Athlon or alternatively video decoding with graphic chip
  • CPU for HDTV: min. Pentium 3, 3 GHz or similar AMD Athlon (Dual Core recommended) or alternatively video decoding with graphic chip
  • 1GB of RAM recommended
  • Hard disk with min. 1GB free capacity
  • Graphics card with min. 64MB memory
  • Sound card with DirectX ® 9 support or higher
  • Available PCIe slot
  • Capable for digital satellite receiver

Package content

  • 1 x TBS-6902 Dual-Tuner DVB-S2 PCIe card
  • 1 x slot cover for low profile
  • 1 x PCIe power cable
  • 1 x drivers, Quick Installation Guide and Software (as download)
