Product features
- Digital HD TV receiver for satellite TV & radio receiving
- DVB-S2X, DVB-S2, DVB-S Standards
- VCM and Multi stream support
- Windows & Linux driver available
Specifications
- Symbol rate: 1 - 45Msymb/s
- DVB-S/S2
- QPSK: 1/2, 3/5, 2/3, 3/4, 4/5, 5/6, 8/9, 9/10
- 8PSK: 3/5, 2/3, 3/4, 5/6, 8/9, 9/10
- 16APSK: 2/3, 3/4, 4/5, 5/6, 8/9, 9/10
- 32APSK: 3/4, 4/5, 5/6, 8/9, 9/10
- DVB-S2X
- QPSK: 1/4, 1/3, 2/5 (S2-MODCODs); 1/2, 3/5, 2/3, 3/4, 4/5, 5/6; 8/9, 9/10 (S2-MODCODs); 11/45, 4/15, 14/45, 7/15, 8/15, 32/45
- 8PSK: (8APSK-L) 3/5, 2/3, 3/4, 5/6, 8/9 (S2-MODCODs); 7/15, 8/15, 26/45, 32/45
- 16APSK: 2/3, 3/4, 4/5, 5/6, 8/9 (S2-MODCODs); 7/15, 8/15, 26/45, 3/5, 32/45
- 32APSK(32APSK-L): 3/4, 4/5, 5/6, 8/9, 9/10 (S2-MODCODs); 32/45 , 11/15, 7/9, (2/3)
- VCM: Yes
- Multi Stream:Yes
Connections and other details
- Max. dimensions of the box (W x D x H in cm): 9 x 7.5 x 2.5
- Weight: 0.49 kg
Minimal system requirements
- Windows 8/10, Linux
- USB 2.0 or USB 3.0 slot available
- One Satellite TV antenna input
Package content

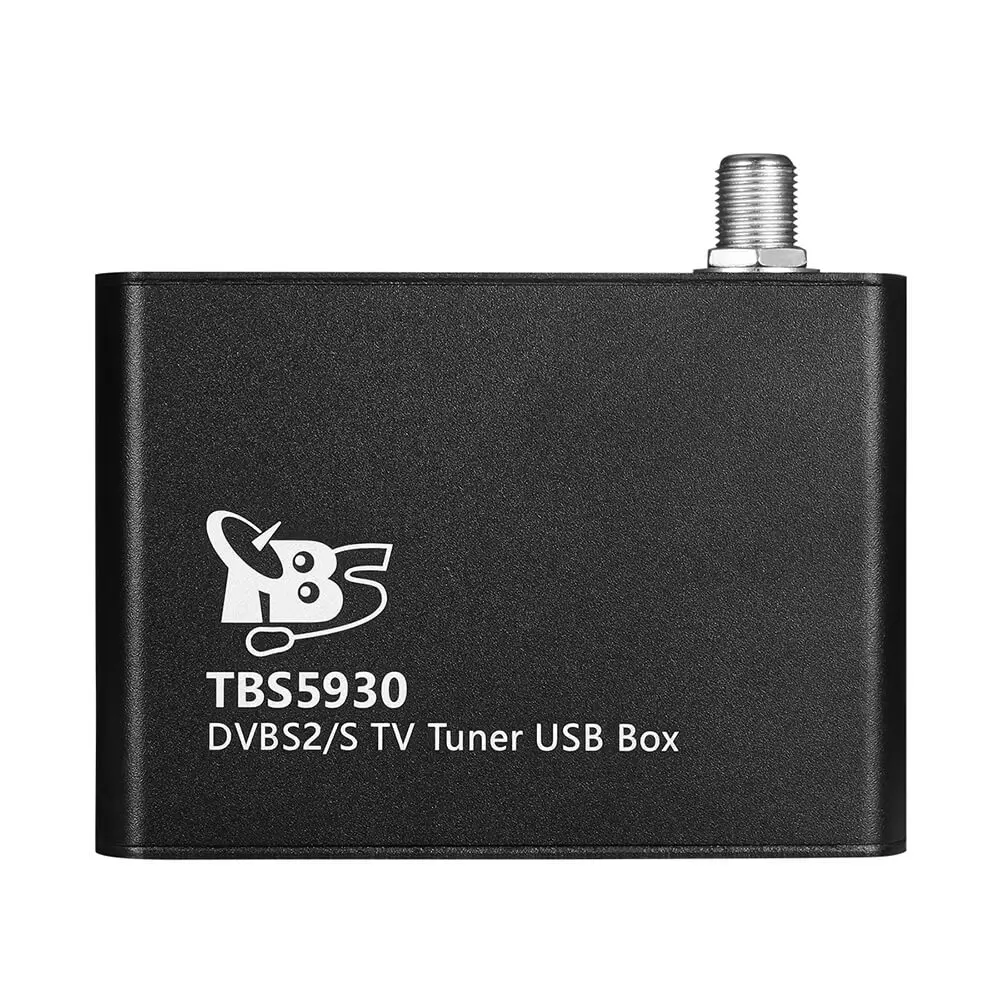

- 1 x TBS-5930
- 1 x External Power Supply
- 1 x USB cable
Download
- Windows Driver
