Product features

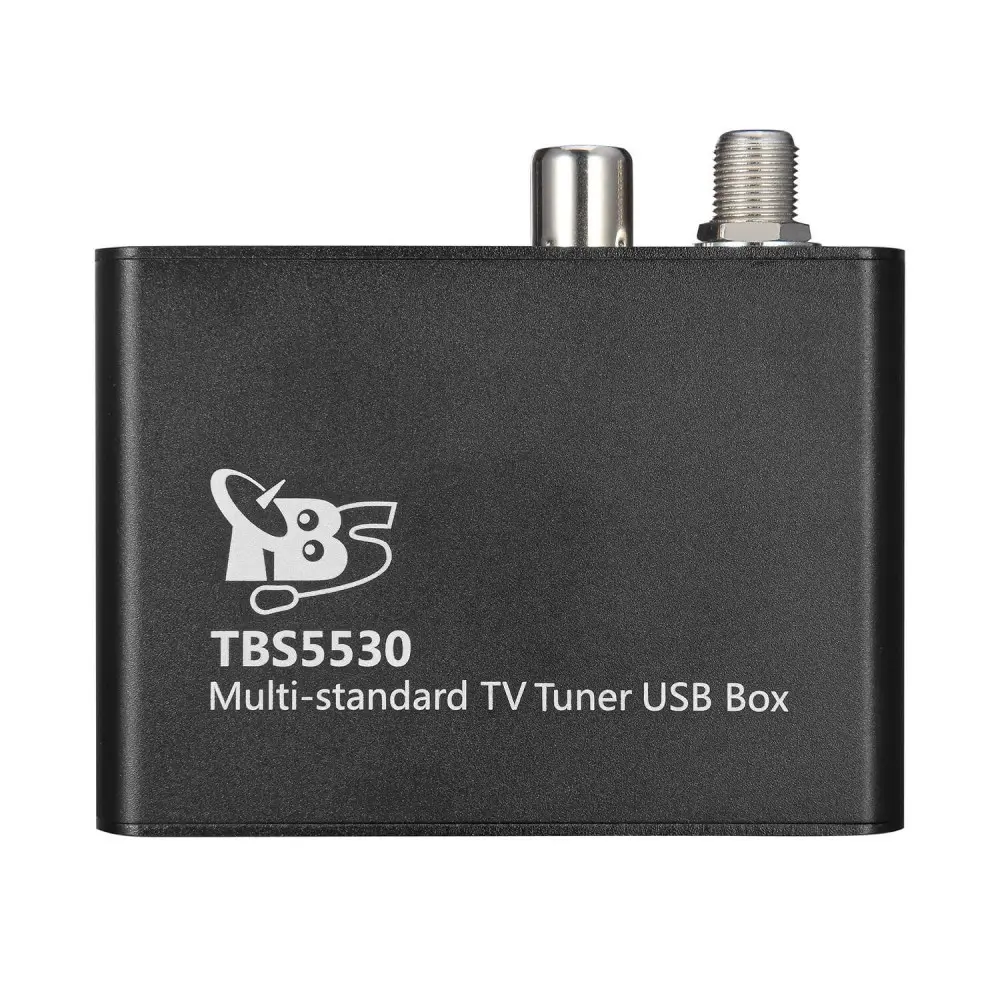

- Digital USB TV reception box, with a tuner for TV and satellite radio reception
- Supports DVB-S2X/S2/S/DVB-T2/C2/T/C(J.83 A/B/C)/ISDB-T/C/ATSC1.0
- Power supply via USB cable
- All resolutions and codecs (e.g.: 1080p, FullHD, 4K, MPEG, H.264, HEVC and many more) are supported, but also depending on your PC-hardware/software
- Plug & Play Installation
- Manual and scheduled recording of Digital-TV / Radio
- Teletext
- TimeShift function to Pause Live TV
- Electronic Program Guide (EPG)
- Full support for 32-Bit and 64-Bit operating systems
- Software application with multiple functionalities for TV reception
- Attention: The box is powered via the USB cable, so if the tuner is used on devices with higher power consumption, such as motor-controlled dishes or monoblock LNBs, it must be used with an optionally available 12 V DC power supply.
Specifications
- Symbolrate: 1 to 45 Msps
- DVB-S2/S:
- QPSK: 1/2, 3/5, 2/3, 3/4, 4/5, 5/6, 8/9, 9/10
- 8PSK: 3/5, 2/3, 3/4, 5/6, 8/9, 9/10
- 16APSK: 2/3, 3/4, 4/5, 5/6, 8/9, 9/10
- 32APSK: 3/4, 4/5, 5/6, 8/9, 9/10
- DVB-S2X:
- QPSK: 1/4, 1/3, 2/5(S2-MODCODs), 1/2, 3/5, 2/3, 3/4, 4/5, 5/6, 8/9, 9/10 (S2-MODCODs), 11/45, 4/15, 14/45, 7/15 8/15, 32/45
- 8PSK (8APSK-L): 3/5, 2/3, 3/4, 5/6, 8/9 (S2-MODCODs), 7/15, 8/15, 26/45, 32/45
- 16APSK: 2/3, 3/4, 4/5, 5/6, 8/9 (S2-MODCODs), 7/15, 8/15, 26/45, 3/5, 32/45
- 32APSK (32APSK-L): 3/4 ,4/5,5/6, 8/9, 9/10 (S2-MODCODs)32/45, 11/15, 7/9,(2/3)
- DVB-T2 and T2-Lite:
- Receiving channel: VHF band, UHF band
- Bandwidth: 1.7,5, 6, 7, 8 MHz
- FEC: 16, 32, 64, 128 and 256QAM
- FFT-Mode: 1K, 2K, 4K, 8K, 16K, 32K
- Guard Interval: 1/32, 1/16, 1/8, 1/4, 1/128, 19/128, 19/256
- Code rate: 1/2, 3/5, 2/3, 3/4, 4/5, 5/6
- DVB-T:
- Bandwidth: 6, 7, 8 MHz
- FEC: QPSK, 16 and 64QAM
- FFT-Mode: 2K, 8K
- Code-Rate: 1/2, 2/3, 3/4, 5/6, 7/8
- DVB-C2:
- COFDM demodulator (16QAM to 4096QAM)
- FEC (LDPC/BCH) decoder
- Bandwidth: 6 MHz, 7 MHz, 8 MHz
- DVB-C:
- Symbol rate: 1.7 to 7.2 Msym/s
- 16, 32, 64, 128 and 256QAM
- 0.15 roll-off factor
- J.83B (ITU-T J.83 v3.0 Annex B):
- Symbol rate: 5.056941, 5.360537, 5.6 Msym/s
- 64 and 256QAM
- 0.18 and 0.12 roll-off factor
- ISDB-T:
- COFDM-demodulator and FEC-decoding
- Support 3 layers decoding
- TMCC decoding
- Support differential demodulation
- AC1 and AC2 decoding
- ISDB-C:
- Symbol rate: 5.274 Msym/s
- 64 and 256QAM
- 0.13 roll-off factor
- TSMF (Transport Streams Multiplexing Frame)
- ATSC 1.0:
- Bandwidth: 6MHz channel
- 8VSB modulation
- Code rate: 2/3
Connections and other details
- A Satellite TV antenna input and input for cable- / terrestrial receiving
- Max. dimensions of the box (W x D x H in cm): 9 x 7.5 x 2.5
- Weight: 0.12 kg approx.
Minimal system requirements
- Operating system (32-Bit and 64-Bit): Windows7, Windows8, Windows10, Windows11(core isolation deactivated), Linux
- CPU for SDTV: min. Pentium3, 1 GHz or similar AMD Athlon or video-decoding over graphic chip
- CPU for HDTV: min. Pentium3, 3 GHz or similar AMD Athlon (Dual Core recommended) or video-decoding over graphic chip
- Recommended 1GB of RAM
- Hard dsik with min. 1GB free capacity
- Graphics card with min. 64MB memory
- Sound card with DirectX® 9-Support or higher
- A free USB 2.0 or USB 3.0 port
- Capable for digital satellite receiver, cable or terrestrial receiving
Package content
- 1 x TBS-5530
- 1 x USB cable
- 1 x F-IEC connector
- 1 x software and driver (as download)
Download
- Windows Driver
